STELLA

Specification

  • Electrostatic powder coated die cast aluminium body
  • PMMA cover, Microprismatic Cover
  • SMD LED light source
  • LED (L80/B10) + DRIVER life time more than 50.000 Hours
  • System Voltage 220 ~ 240 V
  • Input Frequency (Hz) 50 ~ 60 Hz
  • Power Factor ≤ 0.9
  • Operating Temperature (Ta): -200C/+350C
NAME WATT LUMEN IM/W CRI KELVİN(K) DİMENSİON CODES DOWNLOADS
STELLA S1 6 576 96+ 80+ 2700-6500 A:100mm X B:100mm X H:98mm 0546521256

Datasheet
LDT
User Manuel
STELLA S2 8 768 96+ 80+ 2700-6500 A:100mm X B:100mm X H:98mm 0546521256

Datasheet
LDT
User Manuel
STELLA S3 10 960 96+ 80+ 2700-6500 A:100mm X B:100mm X H:98mm 0546521256

Datasheet
LDT
User Manuel
STELLA S4 12 1152 96+ 80+ 2700-6500 A:100mm X B:100mm X H:98mm 0546521256

Datasheet
LDT
User Manuel
STELLA S5 14 1344 96+ 80+ 2700-6500 A:100mm X B:100mm X H:98mm 0546521256

Datasheet
LDT
User Manuel
STELLA S6 20 576 96+ 80+ 2700-6500 A:100mm X B:100mm X H:98mm 0546521256

Datasheet
LDT
User Manuel
STELLA M1 2×6 768 96+ 80+ 2700-6500 A:100mm X B:200mm X H:98mm 0546521256

Datasheet
LDT
User Manuel
STELLA M2 2×8 960 96+ 80+ 2700-6500 A:100mm X B:200mm X H:98mm 0546521256

Datasheet
LDT
User Manuel
STELLA M3 2×10 1152 96+ 80+ 2700-6500 A:100mm X B:200mm X H:98mm 0546521256

Datasheet
LDT
User Manuel
STELLA M4 2×12 1344 96+ 80+ 2700-6500 A:100mm X B:200mm X H:98mm 0546521256

Datasheet
LDT
User Manuel
STELLA M5 2×14 576 96+ 80+ 2700-6500 A:100mm X B:200mm X H:98mm 0546521256

Datasheet
LDT
User Manuel
STELLA M6 2×20 768 96+ 80+ 2700-6500 A:100mm X B:200mm X H:98mm 0546521256

Datasheet
LDT
User Manuel
STELLA L1 3×6 960 96+ 80+ 2700-6500 A:100mm X B:300mm X H:98mm 0546521256

Datasheet
LDT
User Manuel
STELLA L2 3×8 1152 96+ 80+ 2700-6500 A:100mm X B:300mm X H:98mm 0546521256

Datasheet
LDT
User Manuel
STELLA L3 3×10 1344 96+ 80+ 2700-6500 A:100mm X B:300mm X H:98mm 0546521256

Datasheet
LDT
User Manuel
STELLA L4 3×12 960 96+ 80+ 2700-6500 A:100mm X B:300mm X H:98mm 0546521256

Datasheet
LDT
User Manuel
STELLA L5 3×14 1152 96+ 80+ 2700-6500 A:100mm X B:300mm X H:98mm 0546521256

Datasheet
LDT
User Manuel
STELLA L6 3×20 1344 96+ 80+ 2700-6500 A:100mm X B:300mm X H:98mm 0546521256

Datasheet
LDT
User Manuel

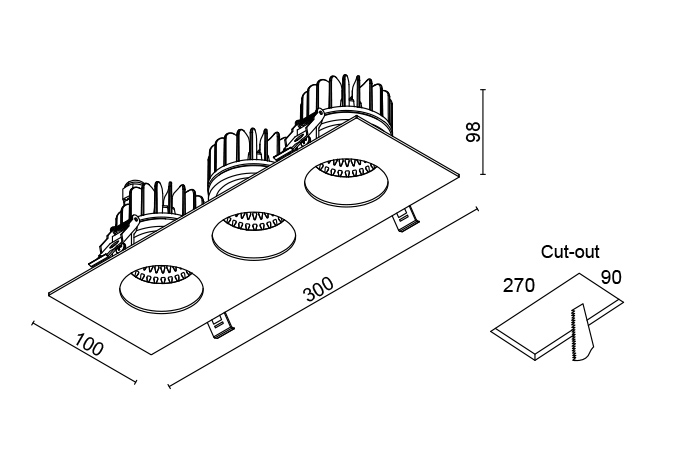

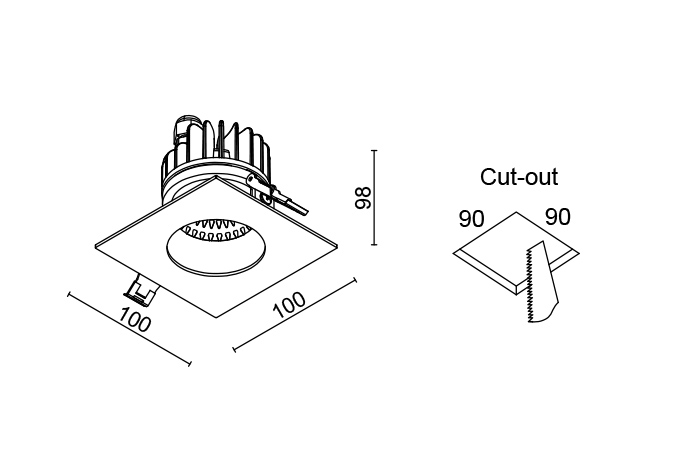

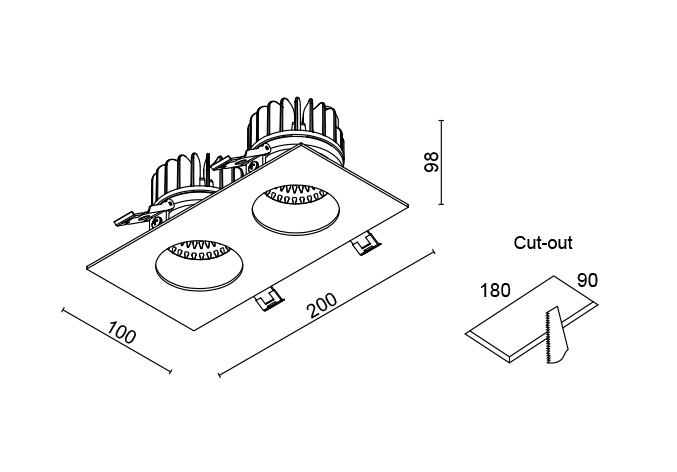

Technical Driwing



Photometry

Colors

Accesories
