SMAX

Specification

  • Electrostatic powder coated die cast aluminium body
  • PMMA cover, Microprismatic Cover
  • SMD LED light source
  • LED (L80/B10) + DRIVER life time more than 50.000 Hours
  • System Voltage 220 ~ 240 V
  • Input Frequency (Hz) 50 ~ 60 Hz
  • Power Factor ≤ 0.9
  • Operating Temperature (Ta): -200C/+350C
NAME WATT LUMEN IM/W CRI KELVİN(K) DİMENSİON CODES DOWNLOADS
SMAX 1X1 100 12000 120+ 80+ 2700-6500 A:95mm X B:95mm X H:80mm 0546521256

Datasheet
LDT
User Manuel
SMAX 2X1 8 768 96+ 80+ 2700-6500 A:95mm X B:95mm X H:80mm 0546521256

Datasheet
LDT
User Manuel
SMAX 3X1 10 960 96+ 80+ 2700-6500 A:95mm X B:95mm X H:80mm 0546521256

Datasheet
LDT
User Manuel
SMAX 4X1 12 1152 96+ 80+ 2700-6500 A:95mm X B:95mm X H:80mm 0546521256

Datasheet
LDT
User Manuel
SMAX 5X1 14 1344 96+ 80+ 2700-6500 A:95mm X B:95mm X H:80mm 0546521256

Datasheet
LDT
User Manuel
SMAX 6X1 2×6 576 96+ 80+ 2700-6500 A:95mm X B:165mm X H:80mm 0546521256

Datasheet
LDT
User Manuel
SMAX 7X1 2×8 768 96+ 80+ 2700-6500 A:95mm X B:165mm X H:80mm 0546521256

Datasheet
LDT
User Manuel
SMAX 8X1 2×10 960 96+ 80+ 2700-6500 A:95mm X B:165mm X H:80mm 0546521256

Datasheet
LDT
User Manuel
SMAX 9X1 2×12 1152 96+ 80+ 2700-6500 A:95mm X B:165mm X H:80mm 0546521256

Datasheet
LDT
User Manuel
SMAX 10X1 2×14 1344 96+ 80+ 2700-6500 A:95mm X B:165mm X H:80mm 0546521256

Datasheet
LDT
User Manuel
SMAX 11X1 3×6 576 96+ 80+ 2700-6500 A:95mm X B:237mm X H:80mm 0546521256

Datasheet
LDT
User Manuel
SMAX 12X1 3×8 768 96+ 80+ 2700-6500 A:95mm X B:237mm X H:80mm 0546521256

Datasheet
LDT
User Manuel
SMAX 4X2 3×10 960 96+ 80+ 2700-6500 A:95mm X B:237mm X H:80mm 0546521256

Datasheet
LDT
User Manuel
SMAX 8X2 3×12 1152 96+ 80+ 2700-6500 A:95mm X B:237mm X H:80mm 0546521256

Datasheet
LDT
User Manuel
SMAX 10X10 3×14 1344 96+ 80+ 2700-6500 A:95mm X B:237mm X H:80mm 0546521256

Datasheet
LDT
User Manuel

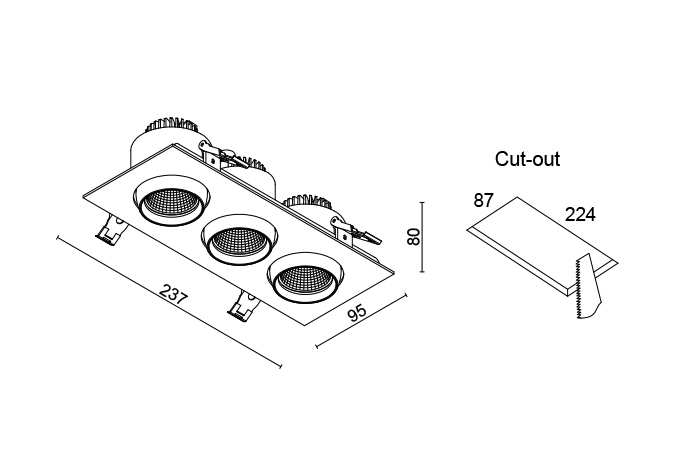

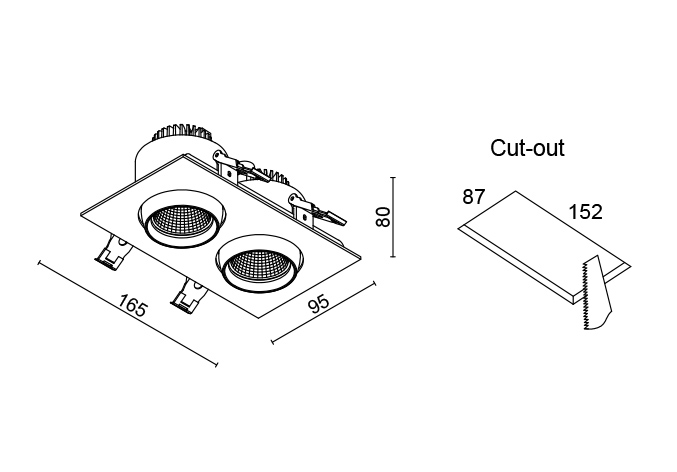

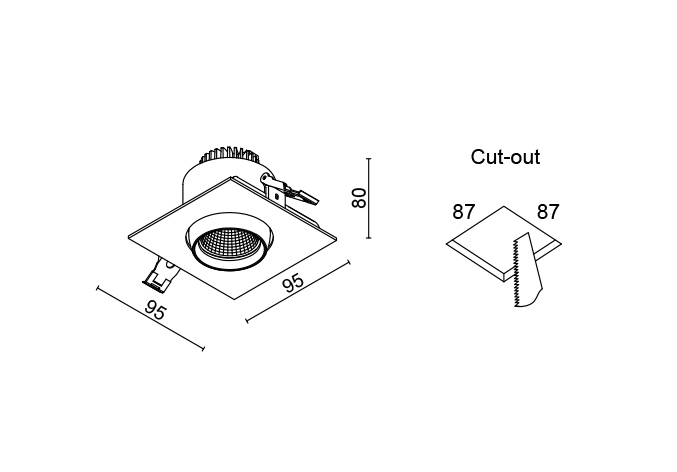

Technical Driwing

Photometry

Colors

Accesories
