SCONIC

Specification

  • Electrostatic powder coated die cast aluminium body
  • PMMA cover, Microprismatic Cover
  • SMD LED light source
  • LED (L80/B10) + DRIVER life time more than 50.000 Hours
  • System Voltage 220 ~ 240 V
  • Input Frequency (Hz) 50 ~ 60 Hz
  • Power Factor ≤ 0.9
  • Operating Temperature (Ta): -200C/+350C
NAME WATT LUMEN IM/W CRI KELVİN(K) DİMENSİON CODES DOWNLOADS
SCONIC 6 672 112+ 80+ 2700-6500 100mmX100mmX75mm 0546521256

Datasheet
LDT
User Manuel
SCONIC 8 896 112+ 80+ 2700-6500 100mmX100mmX75mm 0546521256

Datasheet
LDT
User Manuel
SCONIC 10 1080 108+ 80+ 2700-6500 100mmX100mmX75mm 0546521256

Datasheet
LDT
User Manuel
SCONIC 12 1260 105+ 80+ 2700-6500 100mmX100mmX75mm 0546521256

Datasheet
LDT
User Manuel
SCONIC 14 1420 115+ 80+ 2700-6500 100mmX100mmX75mm 0546521256

Datasheet
LDT
User Manuel
SCONIC 20 2220 111+ 80+ 2700-6500 100mmX100mmX75mm 0546521256

Datasheet
LDT
User Manuel
SCONIC 24 2580 107+ 80+ 2700-6500 100mmX100mmX75mm 0546521256

Datasheet
LDT
User Manuel
SCONIC 28 3040 108+ 80+ 2700-6500 100mmX100mmX75mm 0546521256

Datasheet
LDT
User Manuel

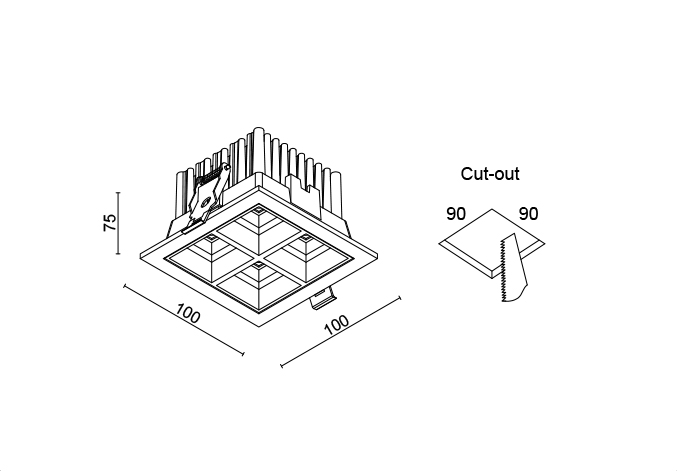

Technical Driwing

Photometry

Colors

Accesories
