SCONIC L

Specification

  • Electrostatic powder coated die cast aluminium body
  • PMMA cover, Microprismatic Cover
  • SMD LED light source
  • LED (L80/B10) + DRIVER life time more than 50.000 Hours
  • System Voltage 220 ~ 240 V
  • Input Frequency (Hz) 50 ~ 60 Hz
  • Power Factor ≤ 0.9
  • Operating Temperature (Ta): -200C/+350C
NAME WATT LUMEN IM/W CRI KELVİN(K) DİMENSİON CODES DOWNLOADS
SCONIC L 6 672 112+ 80+ 2700-6500 60mmX180mmX65mm 0546521256

Datasheet
LDT
User Manuel
SCONIC L 8 896 112+ 80+ 2700-6500 60mmX180mmX65mm 0546521256

Datasheet
LDT
User Manuel
SCONIC L 10 1112 112+ 80+ 2700-6500 60mmX180mmX65mm 0546521256

Datasheet
LDT
User Manuel
SCONIC L 12 1344 112+ 80+ 2700-6500 60mmX180mmX65mm 0546521256

Datasheet
LDT
User Manuel
SCONIC L 14 1568 112+ 80+ 2700-6500 60mmX180mmX65mm 0546521256

Datasheet
LDT
User Manuel

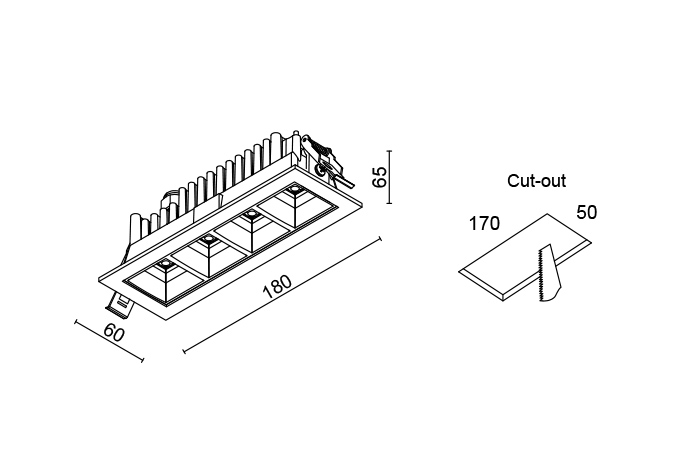

Technical Driwing

Photometry

Colors

Accesories
