RIVA

Specification

  • Electrostatic powder coated die cast aluminium body
  • PMMA cover, Microprismatic Cover
  • SMD LED light source
  • LED (L80/B10) + DRIVER life time more than 50.000 Hours
  • System Voltage 220 ~ 240 V
  • Input Frequency (Hz) 50 ~ 60 Hz
  • Power Factor ≤ 0.9
  • Operating Temperature (Ta): -200C/+350C
NAME WATT LUMEN IM/W CRI KELVİN(K) DİMENSİON CODES DOWNLOADS
RIVA S1 6 576 96+ 80+ 2700-6500 A:95mm X B:95mm X H:95mm 0546521256

Datasheet
LDT
User Manuel
RIVA S2 8 768 96+ 80+ 2700-6500 A:95mm X B:95mm X H:95mm 0546521256

Datasheet
LDT
User Manuel
RIVA S3 10 960 96+ 80+ 2700-6500 A:95mm X B:95mm X H:95mm 0546521256

Datasheet
LDT
User Manuel
RIVA S4 12 1152 96+ 80+ 2700-6500 A:95mm X B:95mm X H:95mm 0546521256

Datasheet
LDT
User Manuel
RIVA S5 14 1344 96+ 80+ 2700-6500 A:95mm X B:95mm X H:95mm 0546521256

Datasheet
LDT
User Manuel
RIVA M1 6 576 96+ 80+ 2700-6500 A:95mm X B:165mm X H:95mm 0546521256

Datasheet
LDT
User Manuel
RIVA M2 8 768 96+ 80+ 2700-6500 A:95mm X B:165mm X H:95mm 0546521256

Datasheet
LDT
User Manuel
RIVA M3 10 960 96+ 80+ 2700-6500 A:95mm X B:165mm X H:95mm 0546521256

Datasheet
LDT
User Manuel
RIVA M4 12 1152 96+ 80+ 2700-6500 A:95mm X B:165mm X H:95mm 0546521256

Datasheet
LDT
User Manuel
RIVA M5 14 1152 96+ 80+ 2700-6500 A:95mm X B:165mm X H:95mm 0546521256

Datasheet
LDT
User Manuel

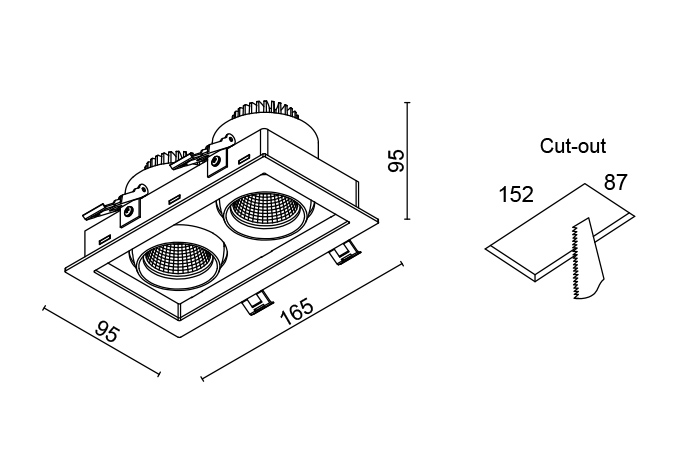

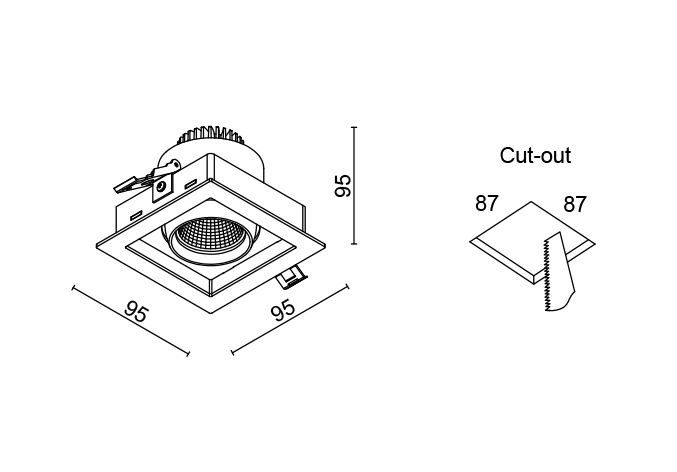

Technical Driwing



Photometry

Colors

Accesories
