TON

Specification

  • Electrostatic powder coated die cast aluminium body
  • PMMA cover, Microprismatic Cover
  • SMD LED light source
  • LED (L80/B10) + DRIVER life time more than 50.000 Hours
  • System Voltage 220 ~ 240 V
  • Input Frequency (Hz) 50 ~ 60 Hz
  • Power Factor ≤ 0.9
  • Operating Temperature (Ta): -200C/+350C
NAME WATT LUMEN IM/W CRI KELVİN(K) DİMENSİON CODES DOWNLOADS
PANTON 1 6 576 96+ 80+ 2700-6500 A:90mm X B:90mm X H:95mm – A:115mm X B:115mm X H:95mm -A:140mm X B:140mm X H:115mm – A:170mm X B:170mm X H:105mm 0546521256

Datasheet
LDT
User Manuel
PANTON 2 8 768 96+ 80+ 2700-6500 A:90mm X B:90mm X H:95mm – A:115mm X B:115mm X H:95mm -A:140mm X B:140mm X H:115mm – A:170mm X B:170mm X H:105mm 0546521256

Datasheet
LDT
User Manuel
PANTON 3 10 960 96+ 80+ 2700-6500 A:90mm X B:90mm X H:95mm – A:115mm X B:115mm X H:95mm -A:140mm X B:140mm X H:115mm – A:170mm X B:170mm X H:105mm 0546521256

Datasheet
LDT
User Manuel
PANTON 4 12 960 96+ 80+ 2700-6500 A:90mm X B:90mm X H:95mm – A:115mm X B:115mm X H:95mm -A:140mm X B:140mm X H:115mm – A:170mm X B:170mm X H:105mm 0546521256

Datasheet
LDT
User Manuel
PANTON 5 14 960 96+ 80+ 2700-6500 A:90mm X B:90mm X H:95mm – A:115mm X B:115mm X H:95mm -A:140mm X B:140mm X H:115mm – A:170mm X B:170mm X H:105mm 0546521256

Datasheet
LDT
User Manuel
PANTON 6 20 960 96+ 80+ 2700-6500 A:90mm X B:90mm X H:95mm – A:115mm X B:115mm X H:95mm -A:140mm X B:140mm X H:115mm – A:170mm X B:170mm X H:105mm 0546521256

Datasheet
LDT
User Manuel

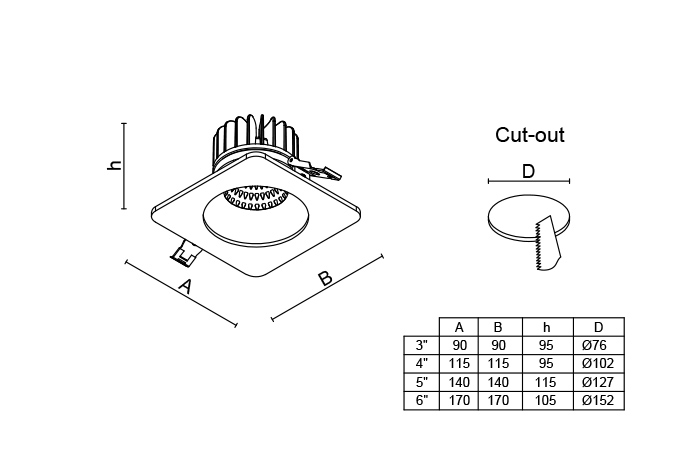

Technical Driwing

Photometry

Colors

Accesories
