LORA

NAME	WATT	LUMEN	IM/W	CRI	KELVİN(K)	DİMENSİON	CODES	DOWNLOADS
ALORA S1	20	576	96+	80+	2700-6500	A:155mm X B:155mm X H:160mm	0546521256	Datasheet LDT User Manuel
ALORA S2	28	768	96+	80+	2700-6500	A:155mm X B:155mm X H:160mm	0546521256	Datasheet LDT User Manuel
ALORA S3	36	960	96+	80+	2700-6500	A:155mm X B:155mm X H:160mm	0546521256	Datasheet LDT User Manuel
ALORA M1	2×20	1152	96+	80+	2700-6500	A:155mm X B:285mm X H:160mm	0546521256	Datasheet LDT User Manuel
ALORA M2	2×28	1344	96+	80+	2700-6500	A:155mm X B:285mm X H:160mm	0546521256	Datasheet LDT User Manuel
ALORA M3	2×36	576	96+	80+	2700-6500	A:155mm X B:285mm X H:160mm	0546521256	Datasheet LDT User Manuel
ALORA L1	3×20	768	96+	80+	2700-6500	A:155mm X B:405mm X H:160mm	0546521256	Datasheet LDT User Manuel
ALORA L2	3×28	960	96+	80+	2700-6500	A:155mm X B:405mm X H:160mm	0546521256	Datasheet LDT User Manuel
ALORA L3	3×36	1152	96+	80+	2700-6500	A:155mm X B:405mm X H:160mm	0546521256	Datasheet LDT User Manuel

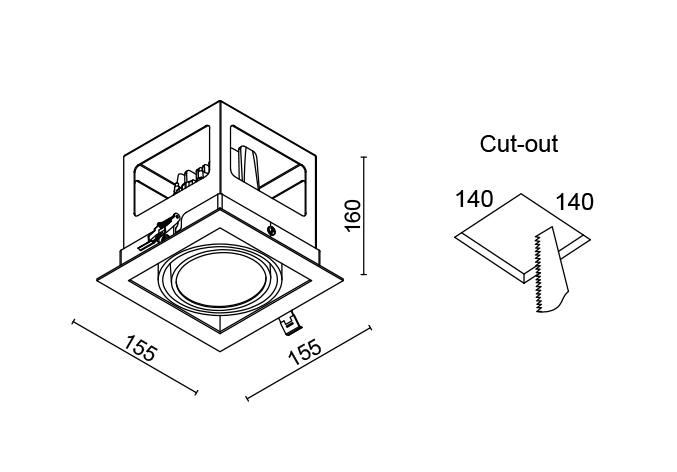

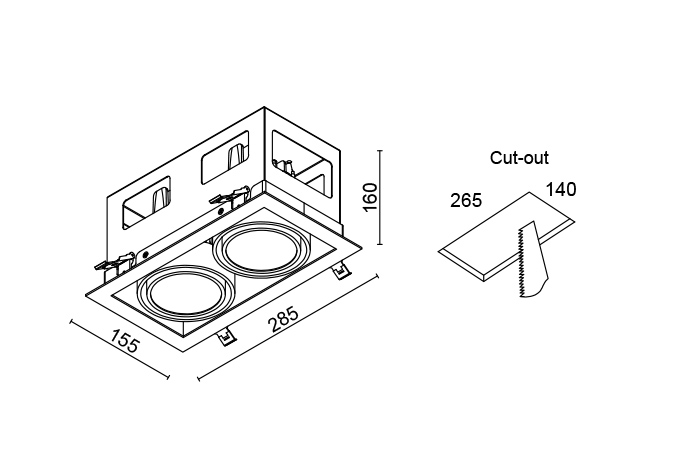

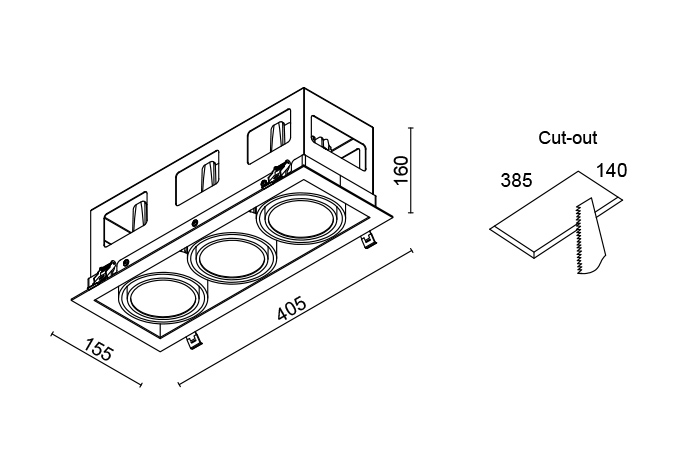

Technical Driwing
